IMAC

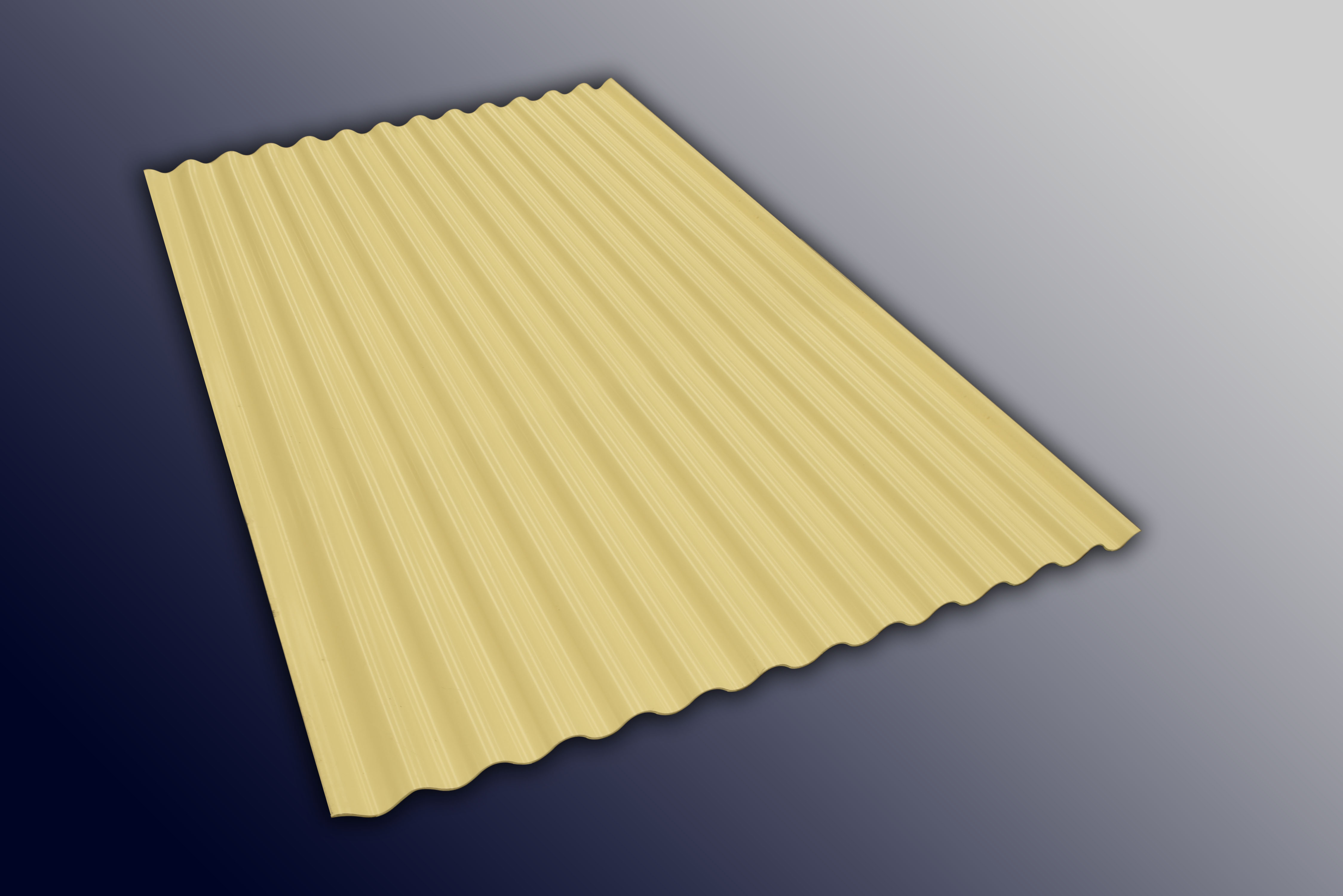

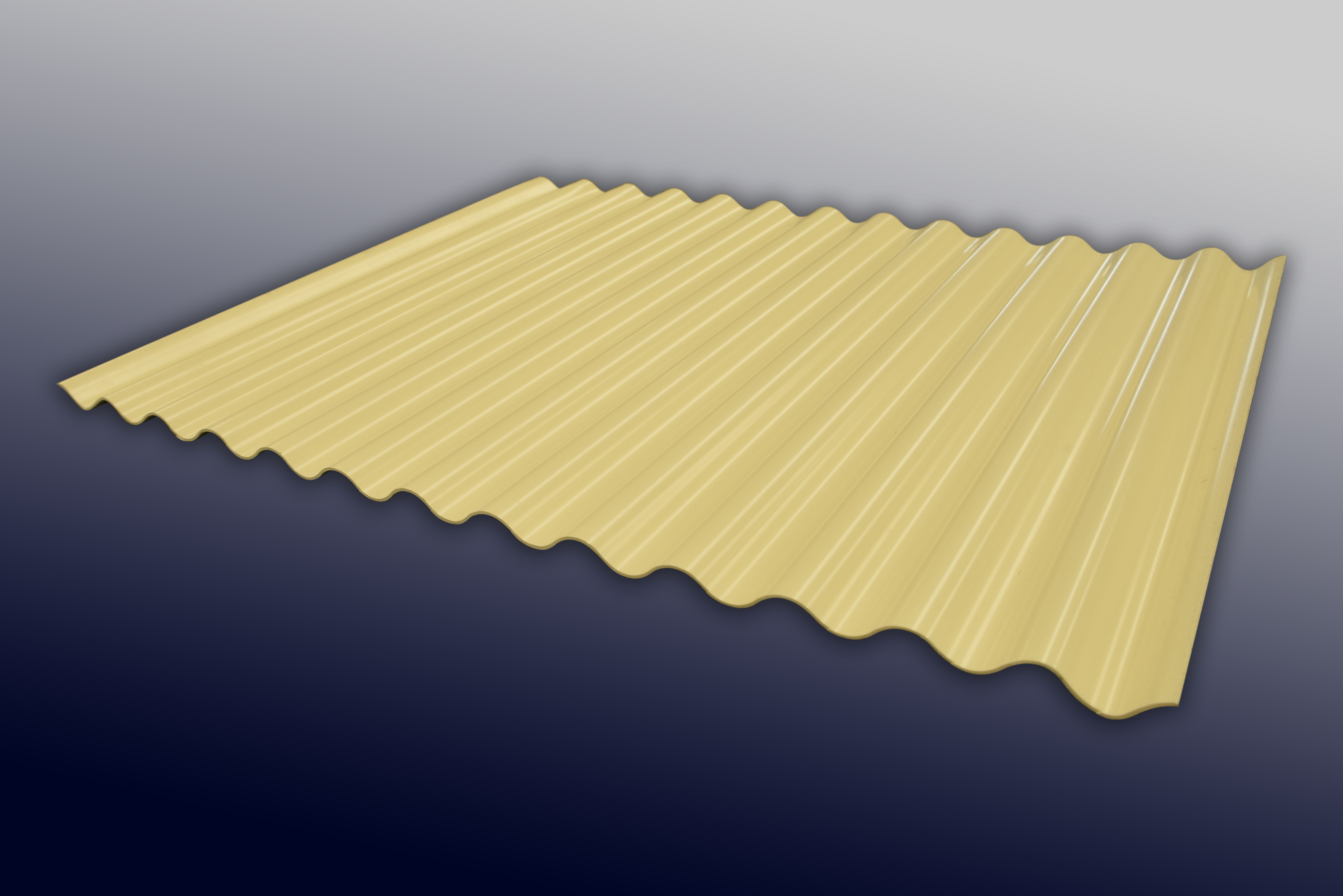

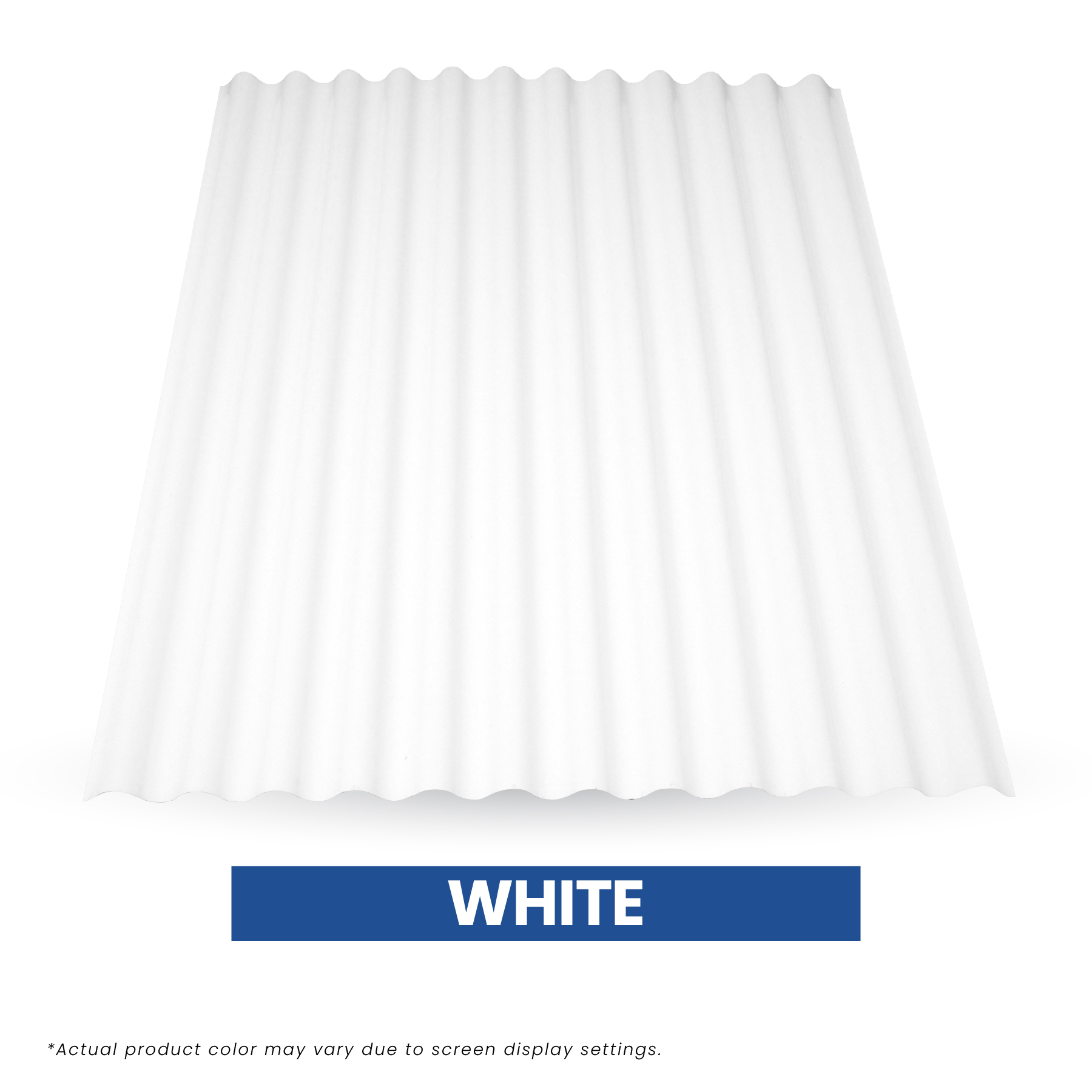

- Corrugated

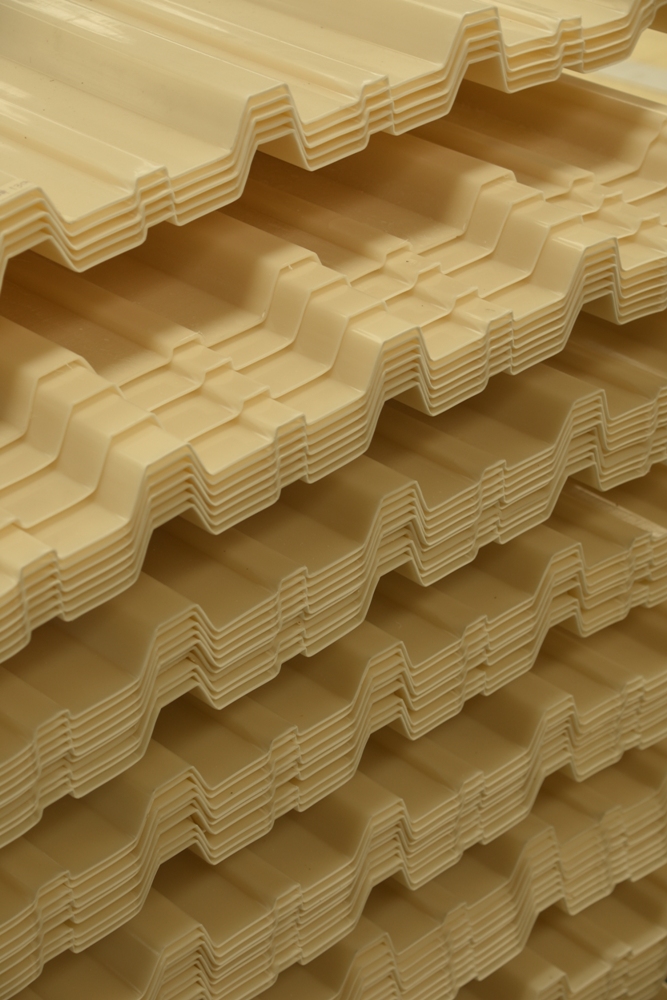

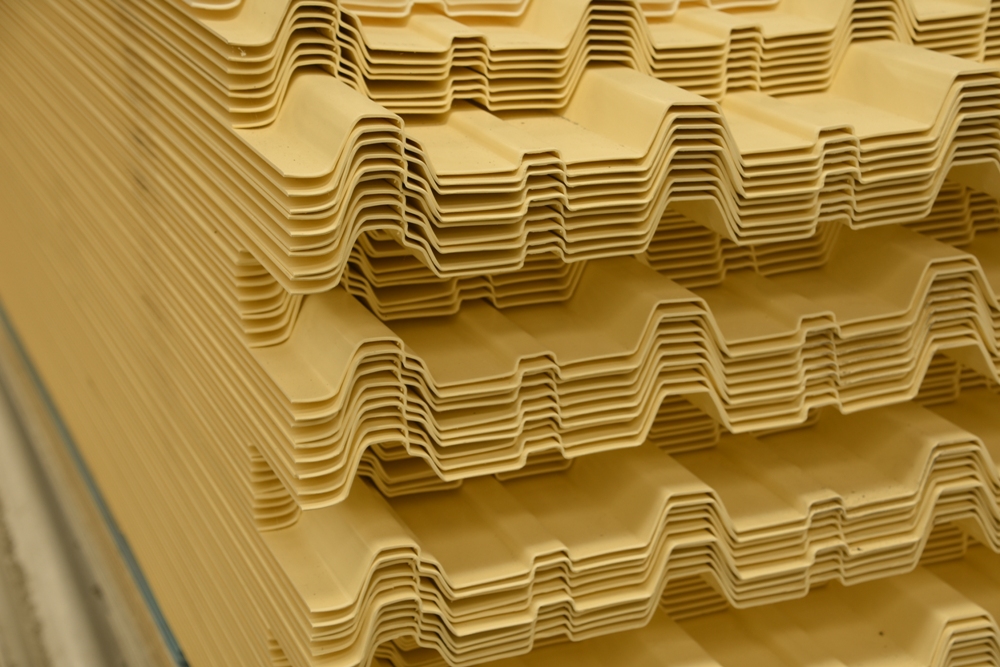

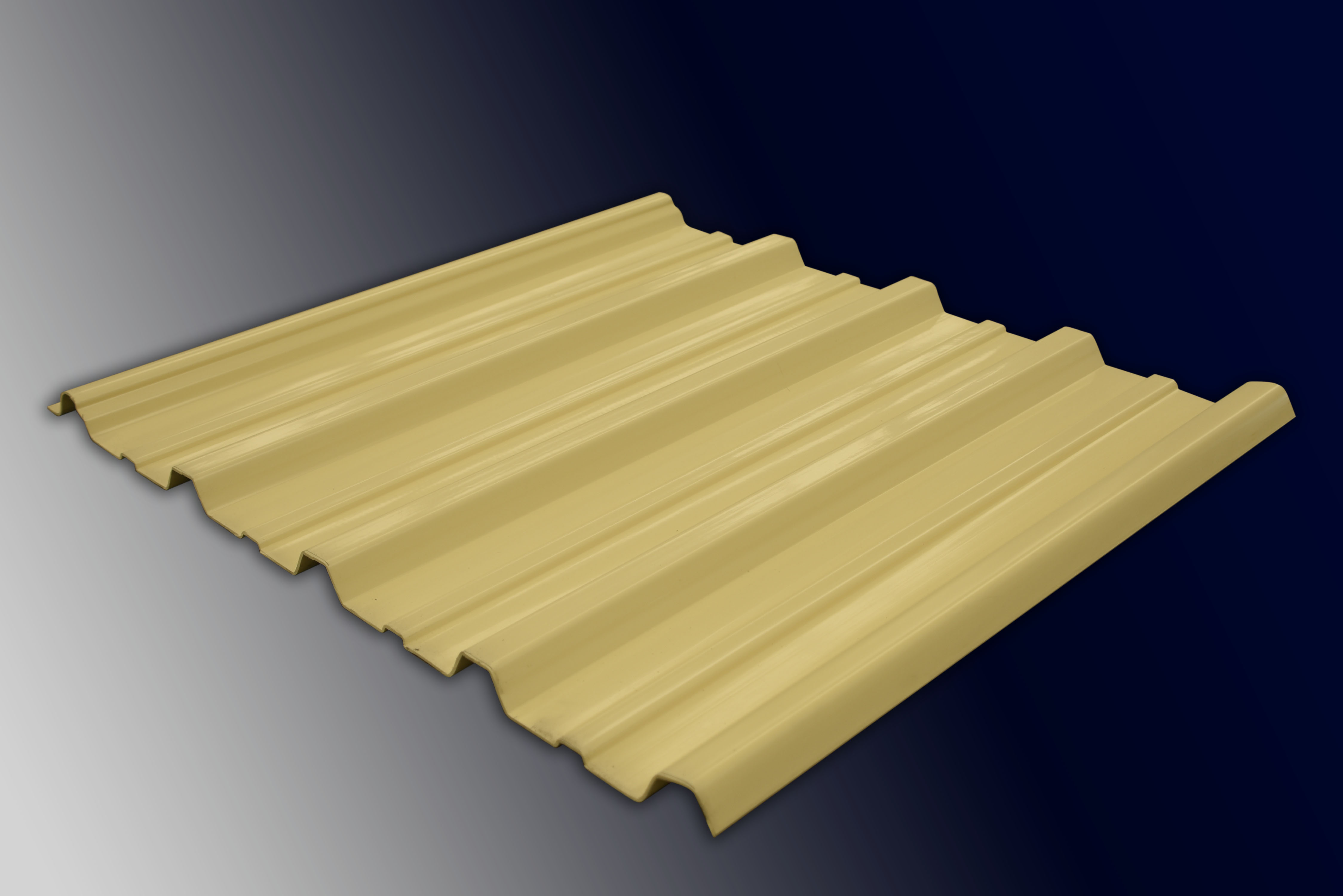

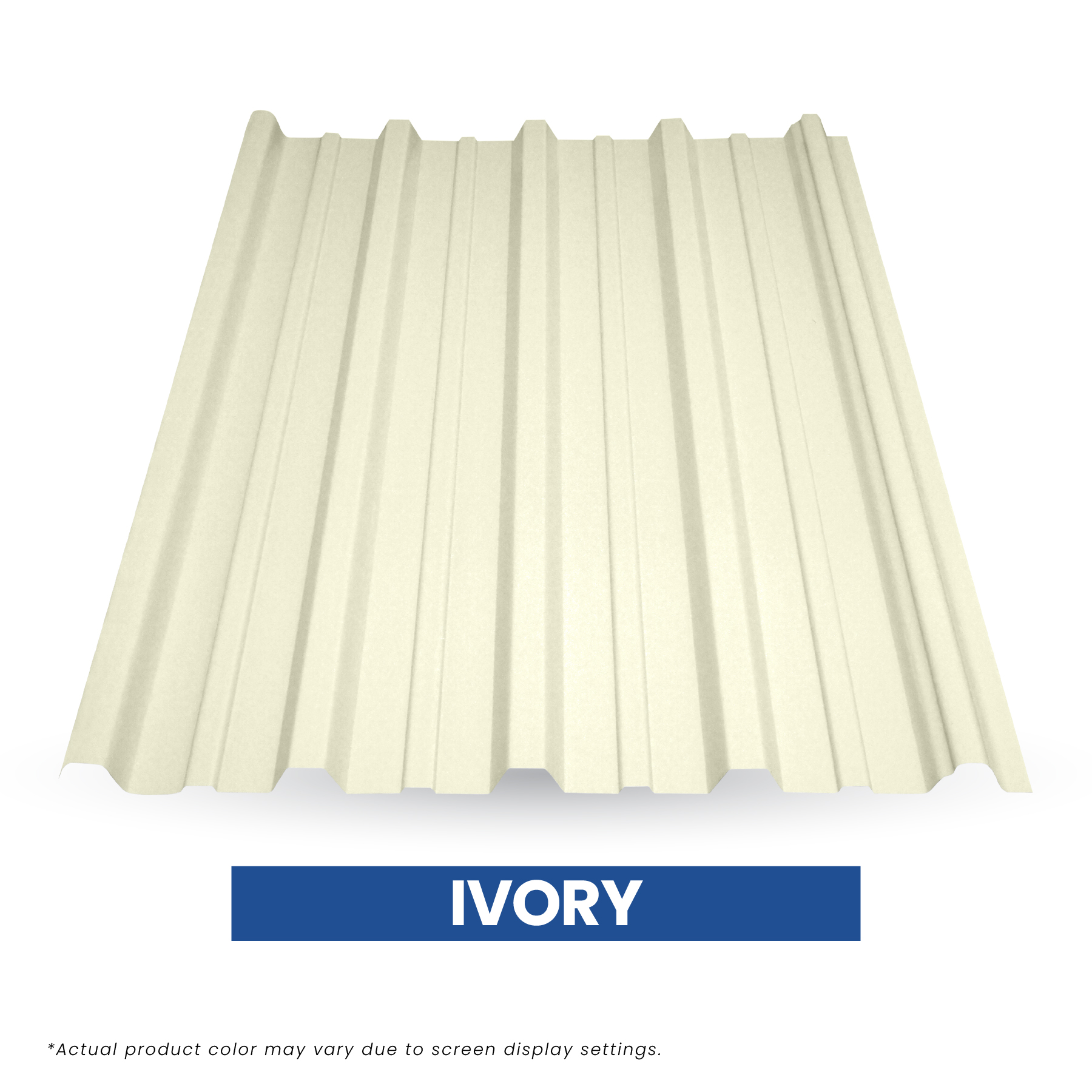

- Rib Type

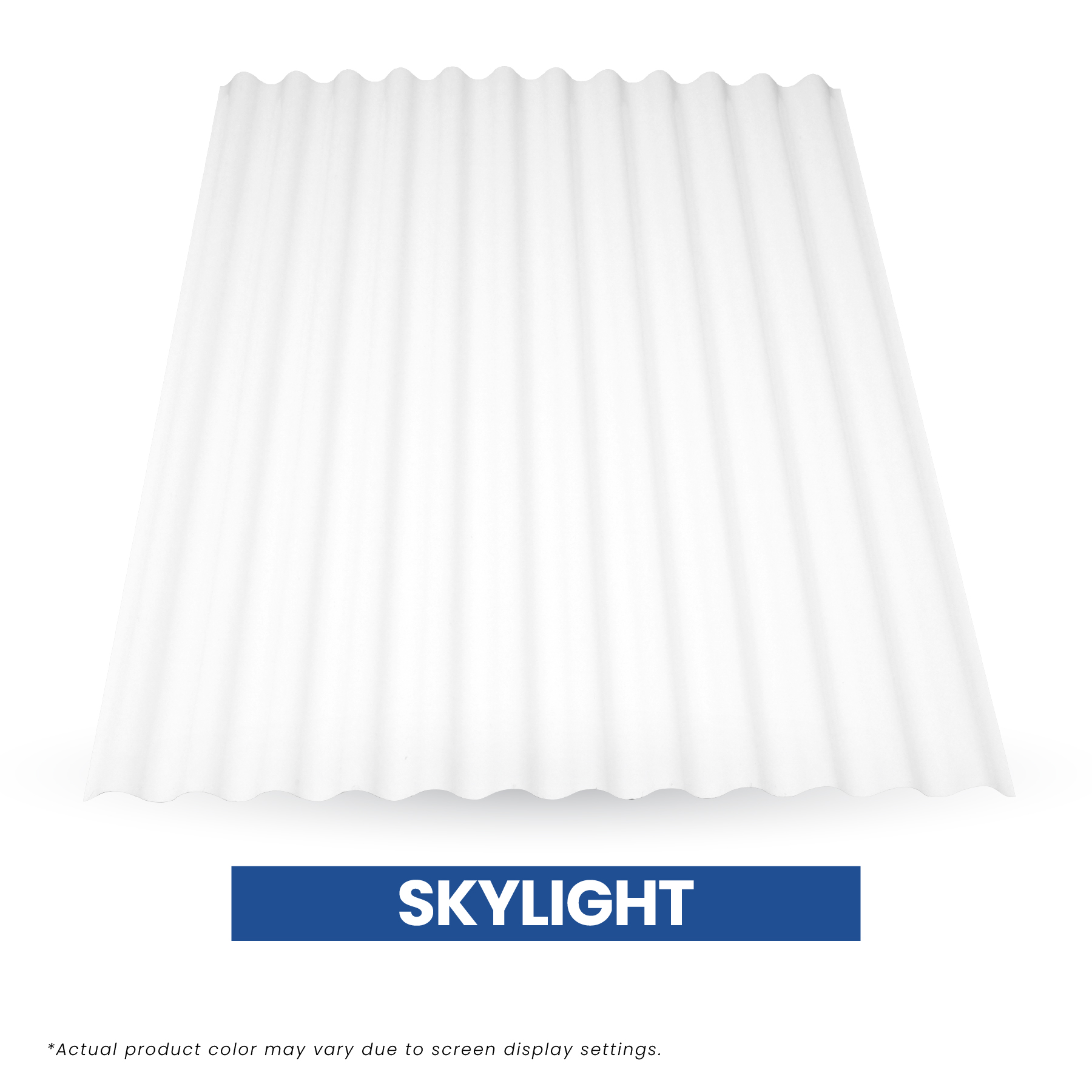

- Skylight
- Plain Sheet

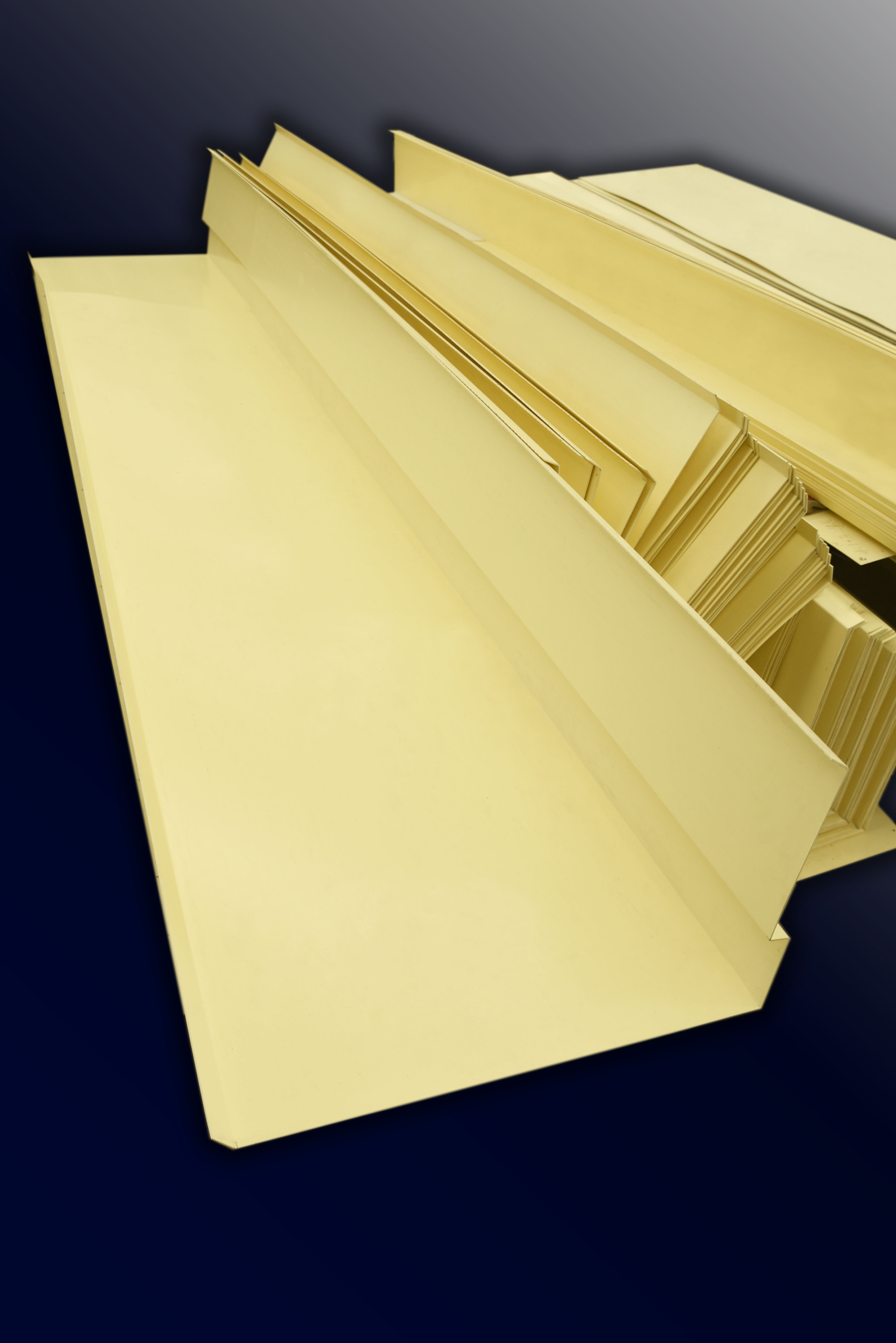

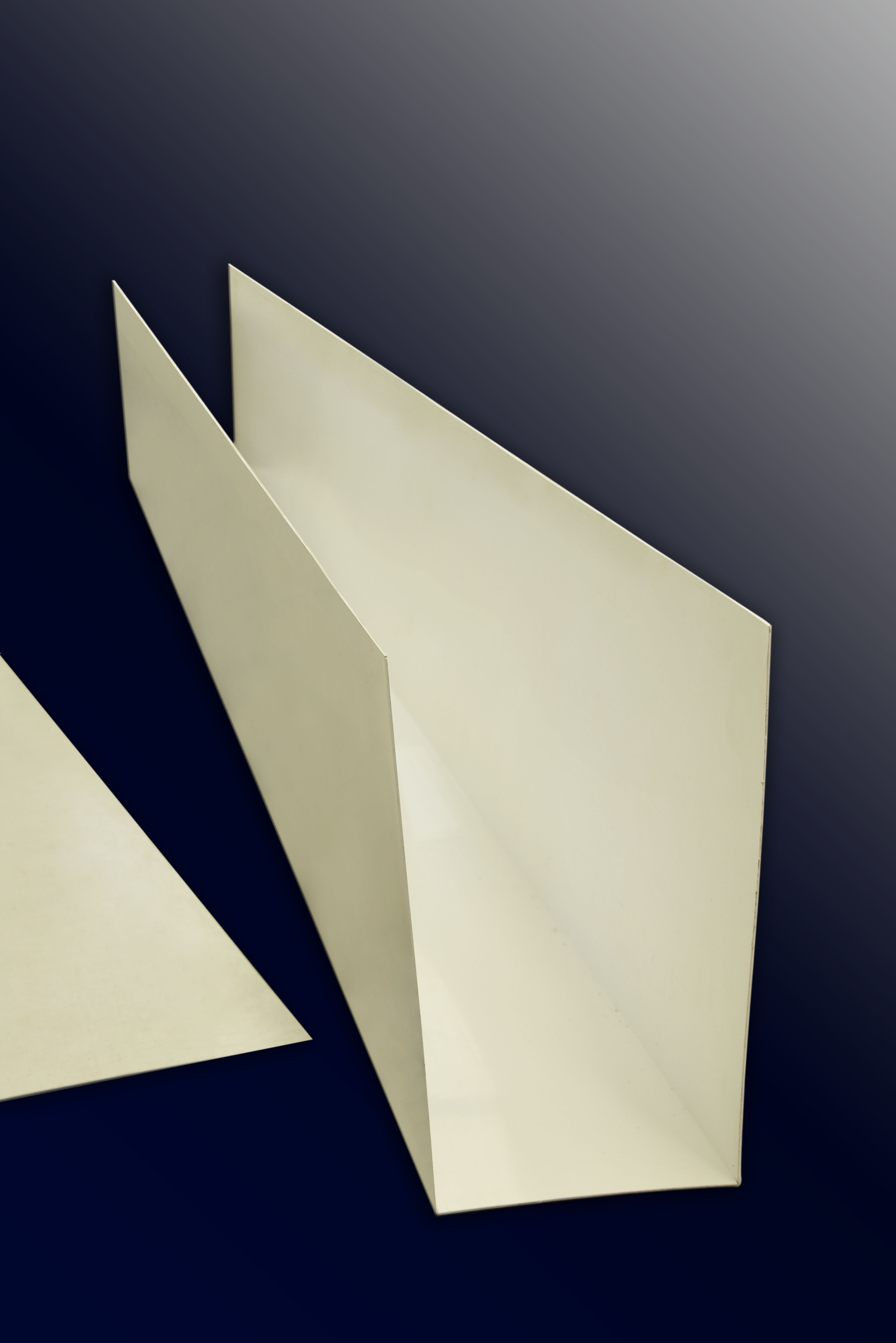

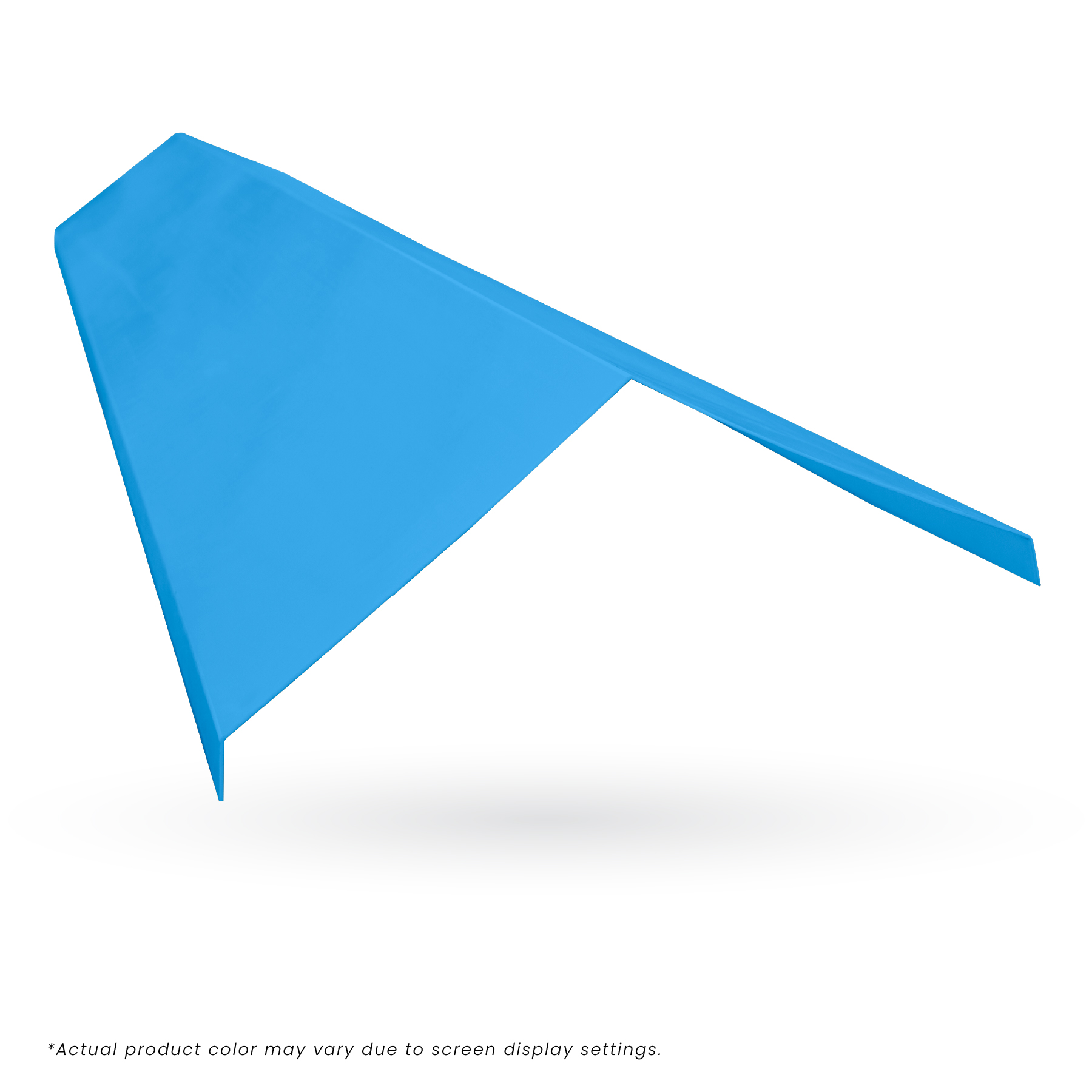

- Bended

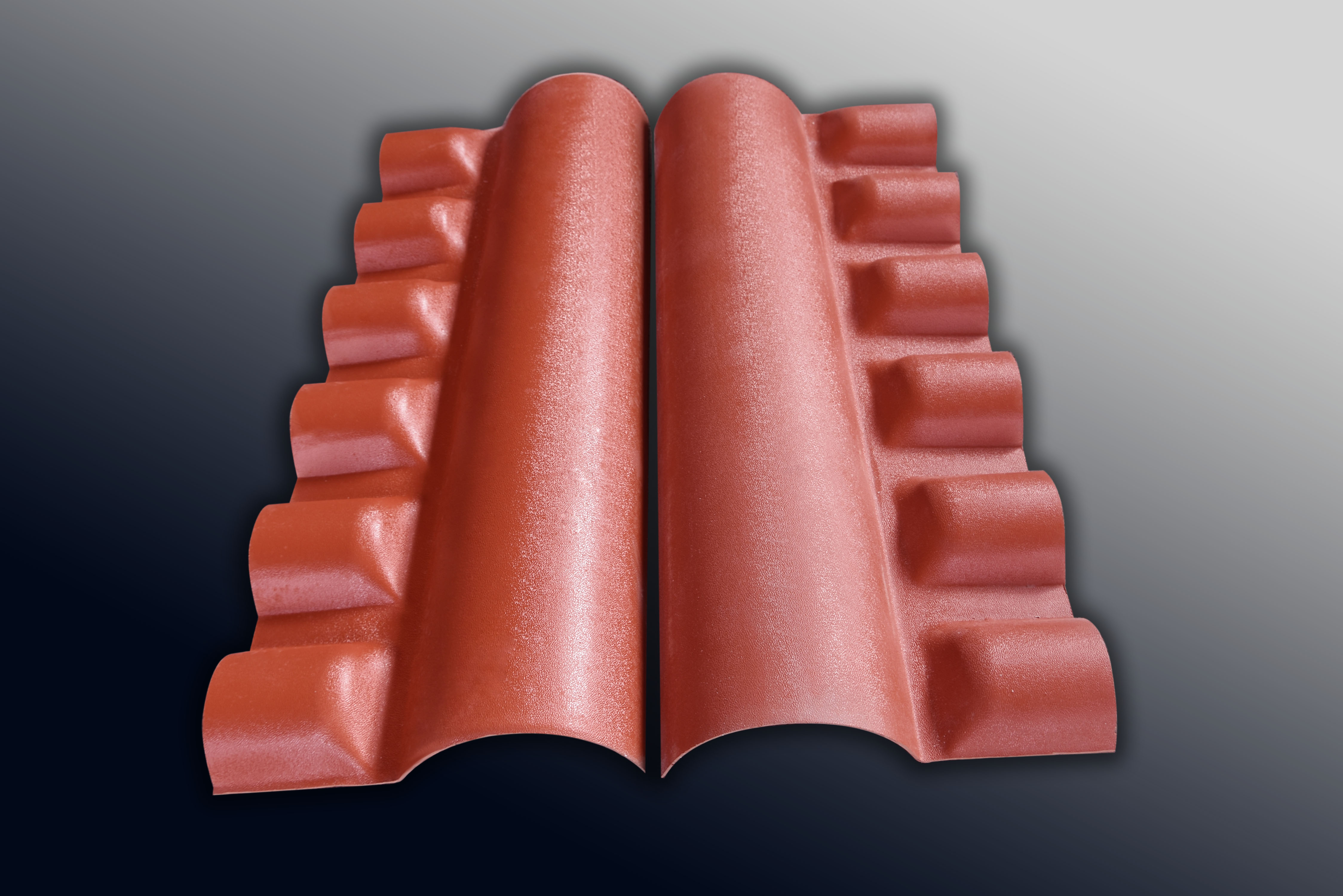

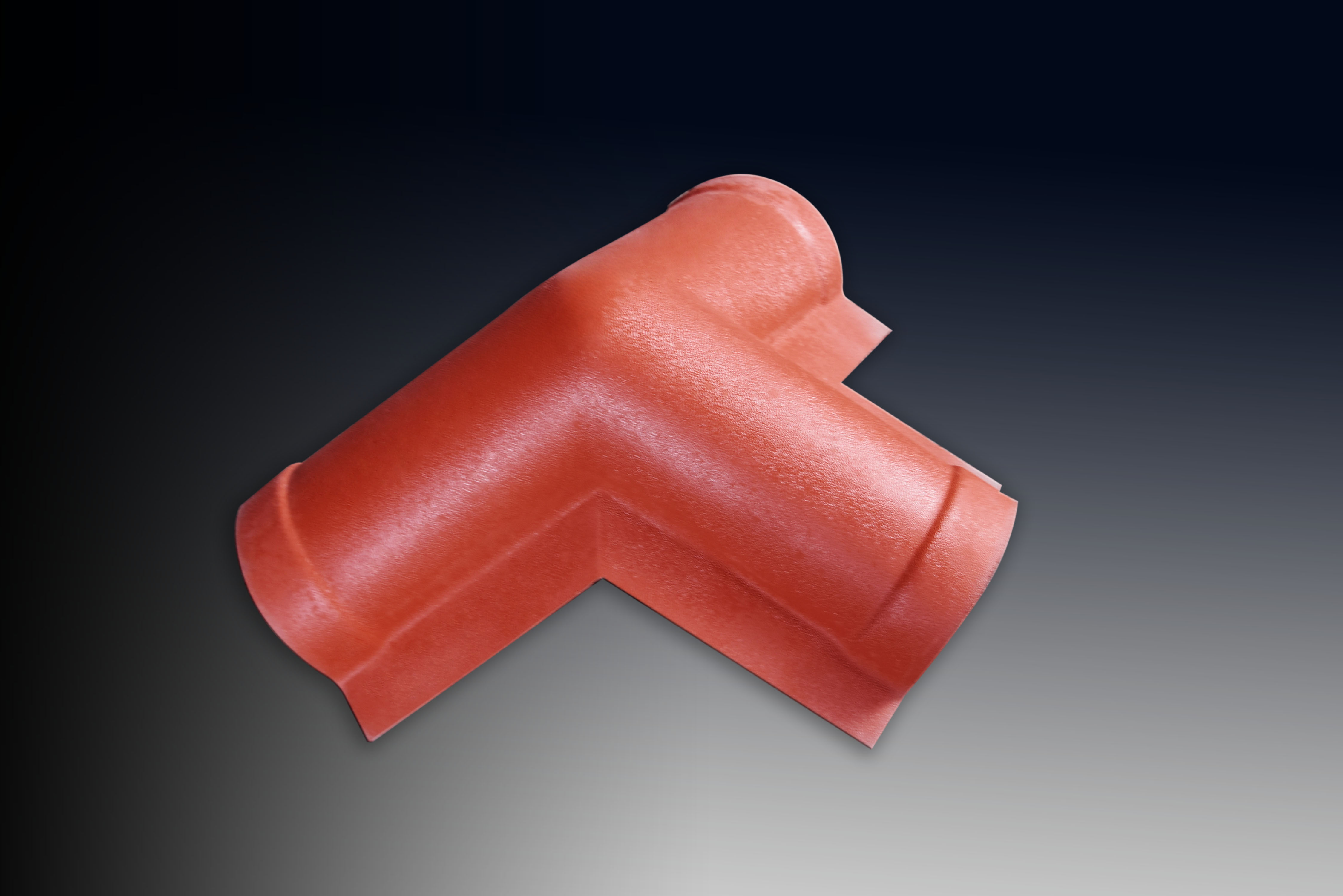

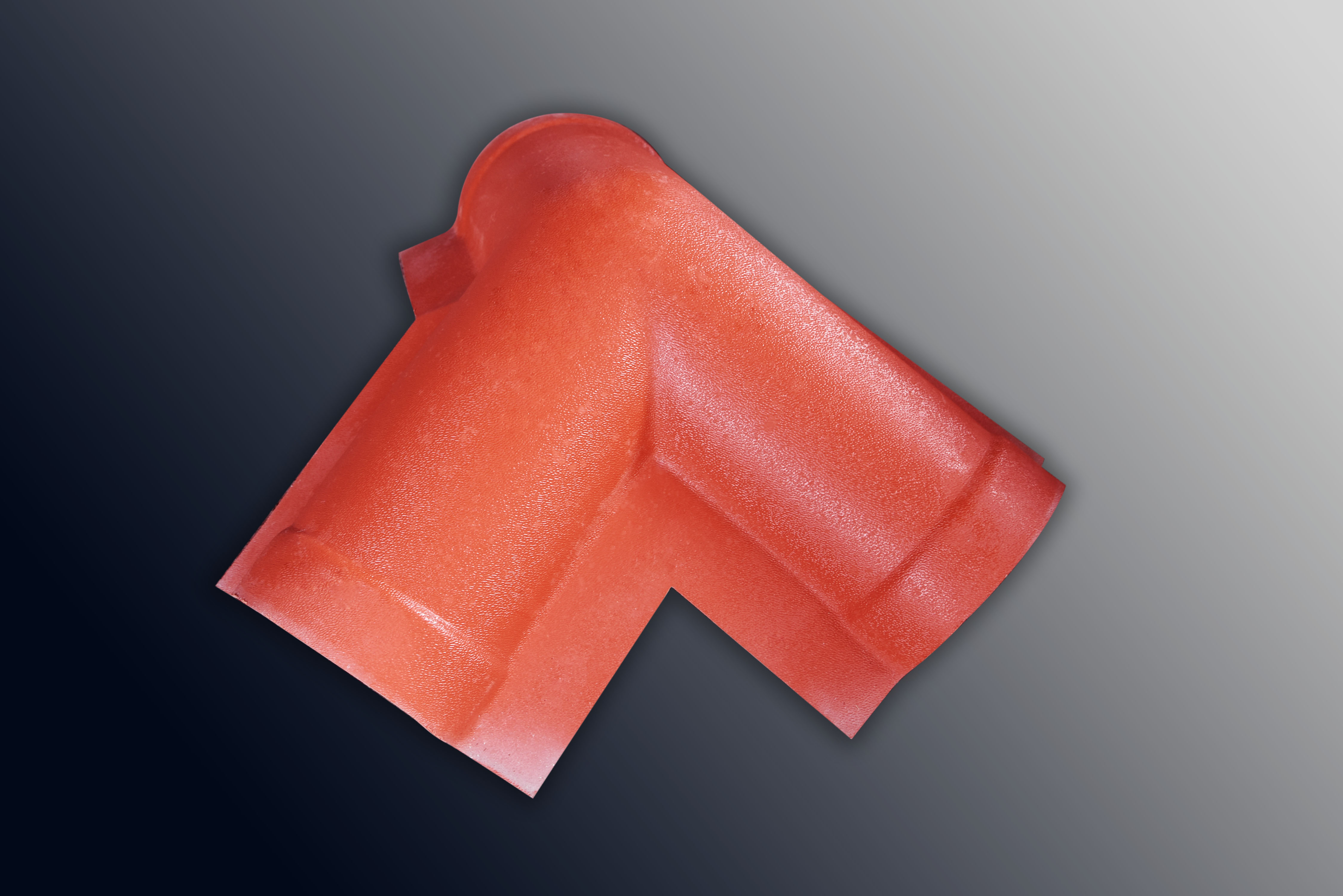

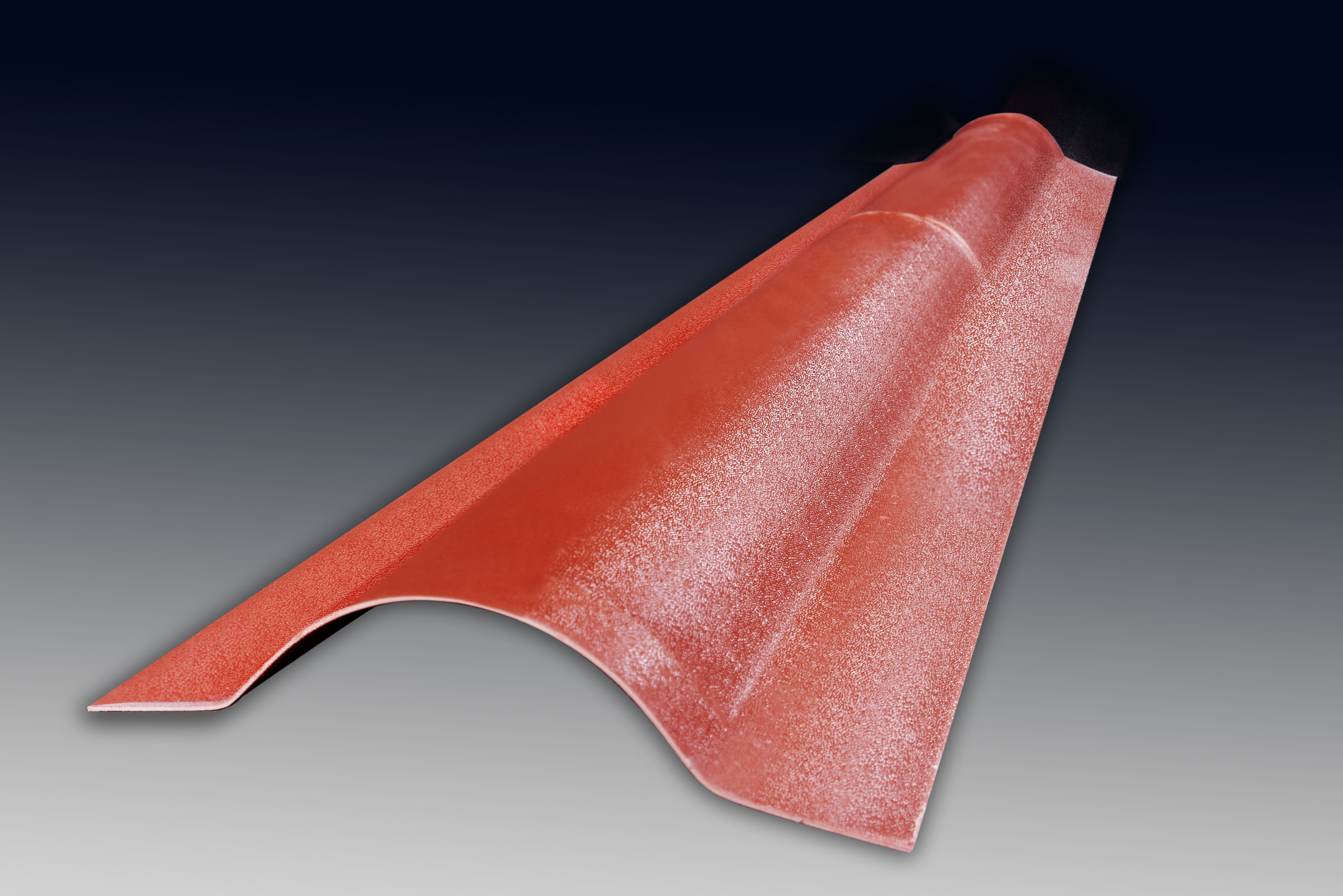

- Teja

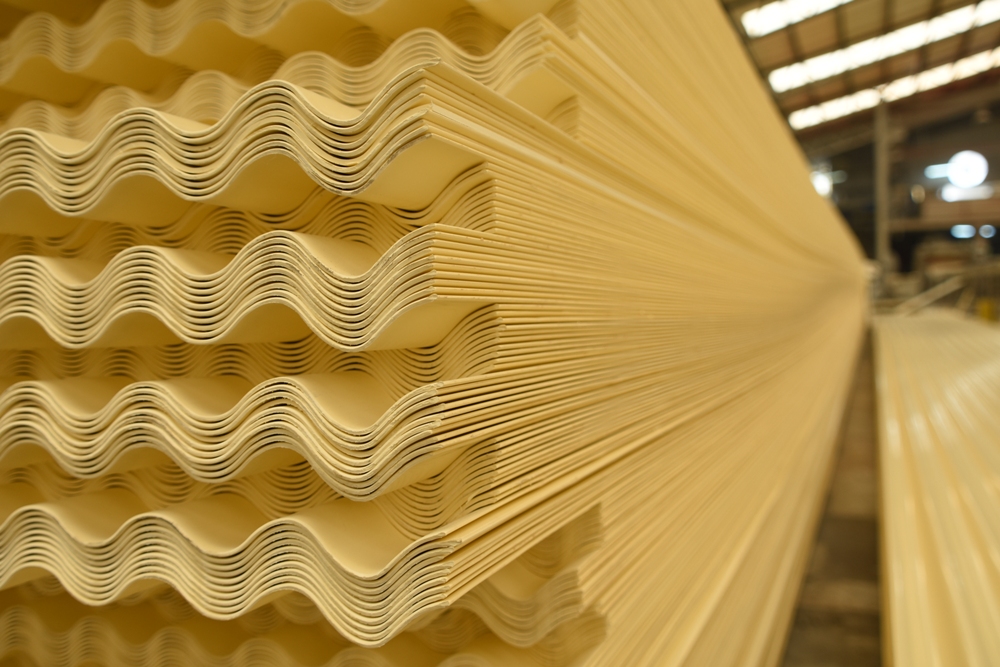

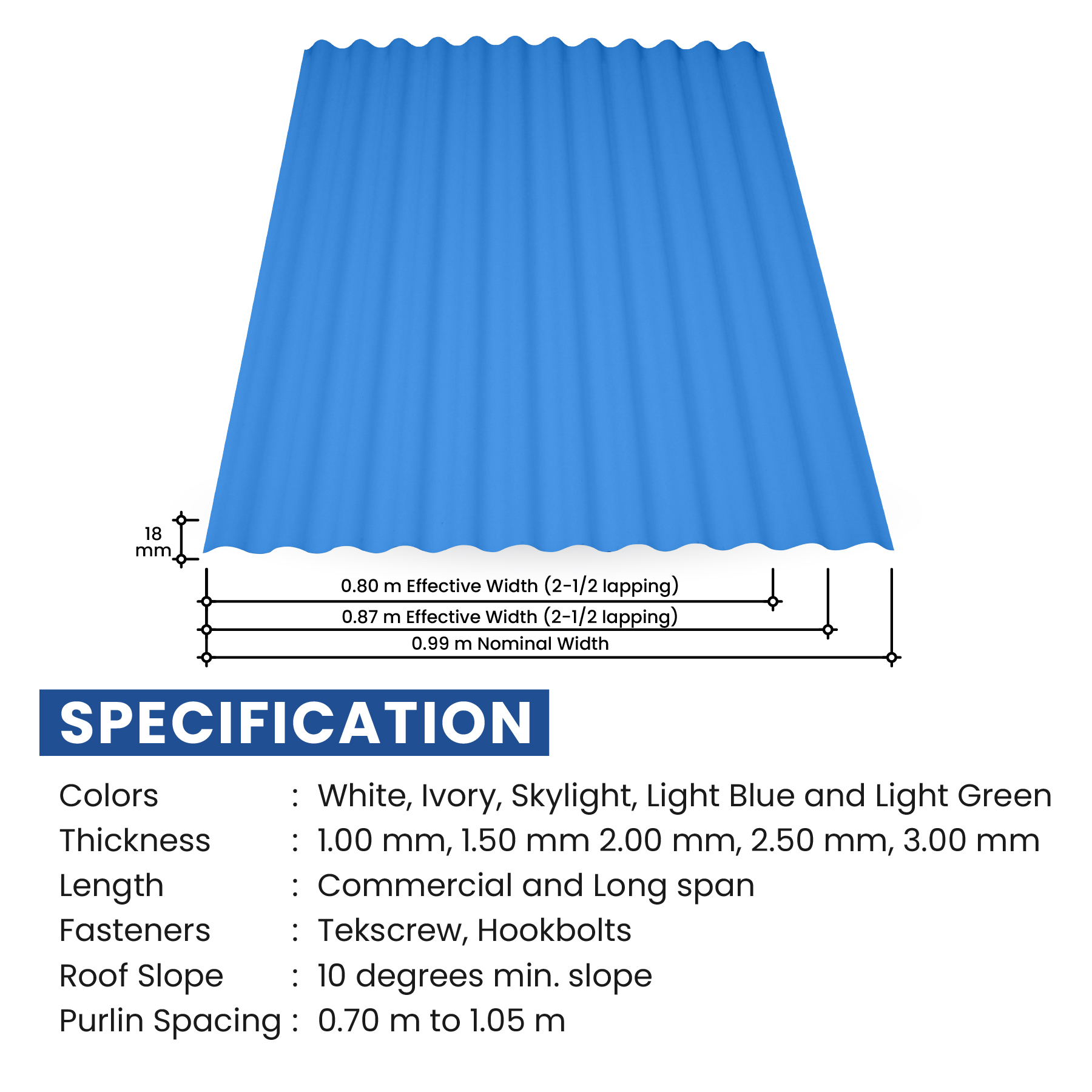

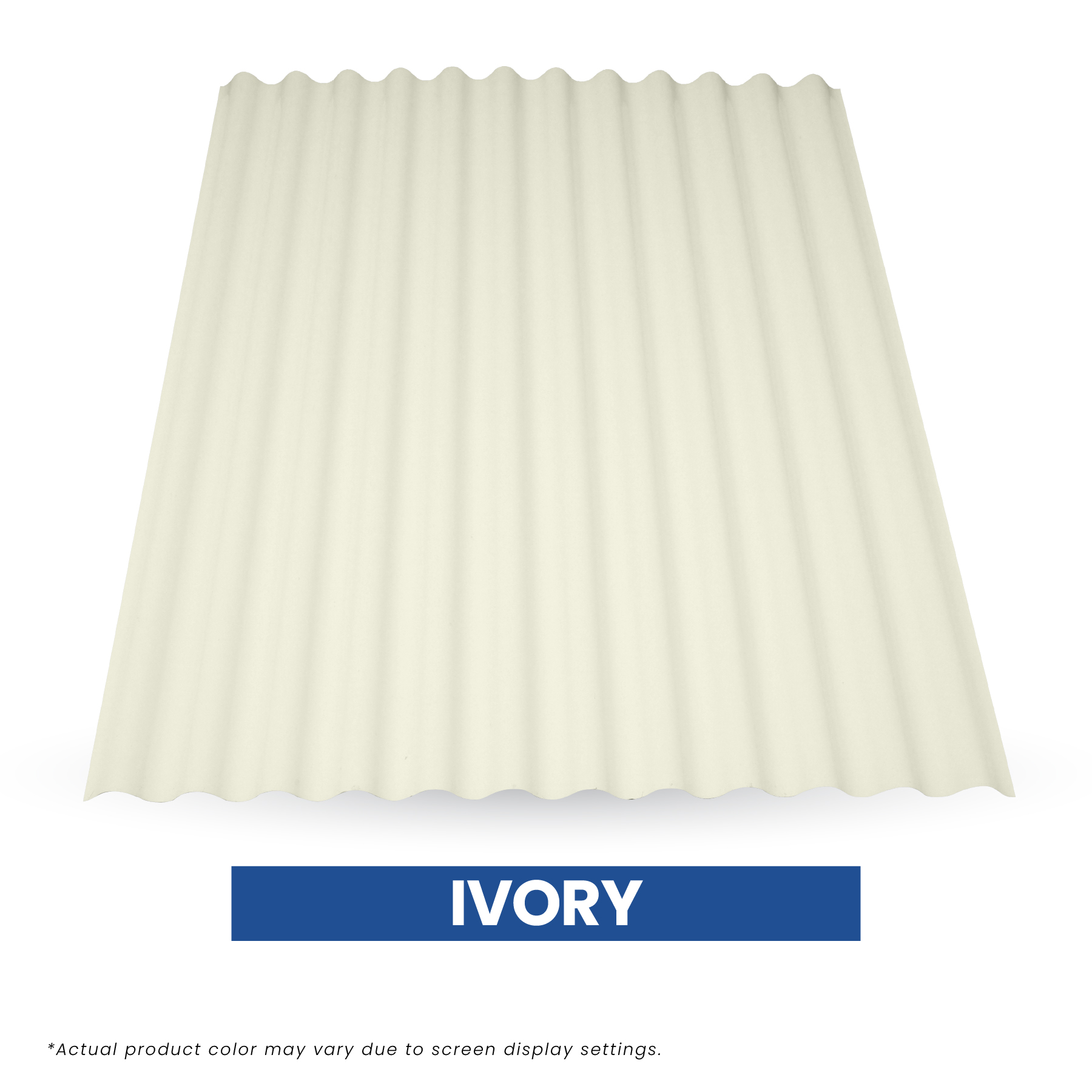

| Nominal Width | : | 0.990 meter |
| Effective Coverage | : | 0.800 meter ( 2 ½ corrugation side lapping ) |
| 0.870 meter ( 1 ½ corrugation side lapping ) | ||
| 0.834 meter ( 2 corrugation side lapping ) | ||

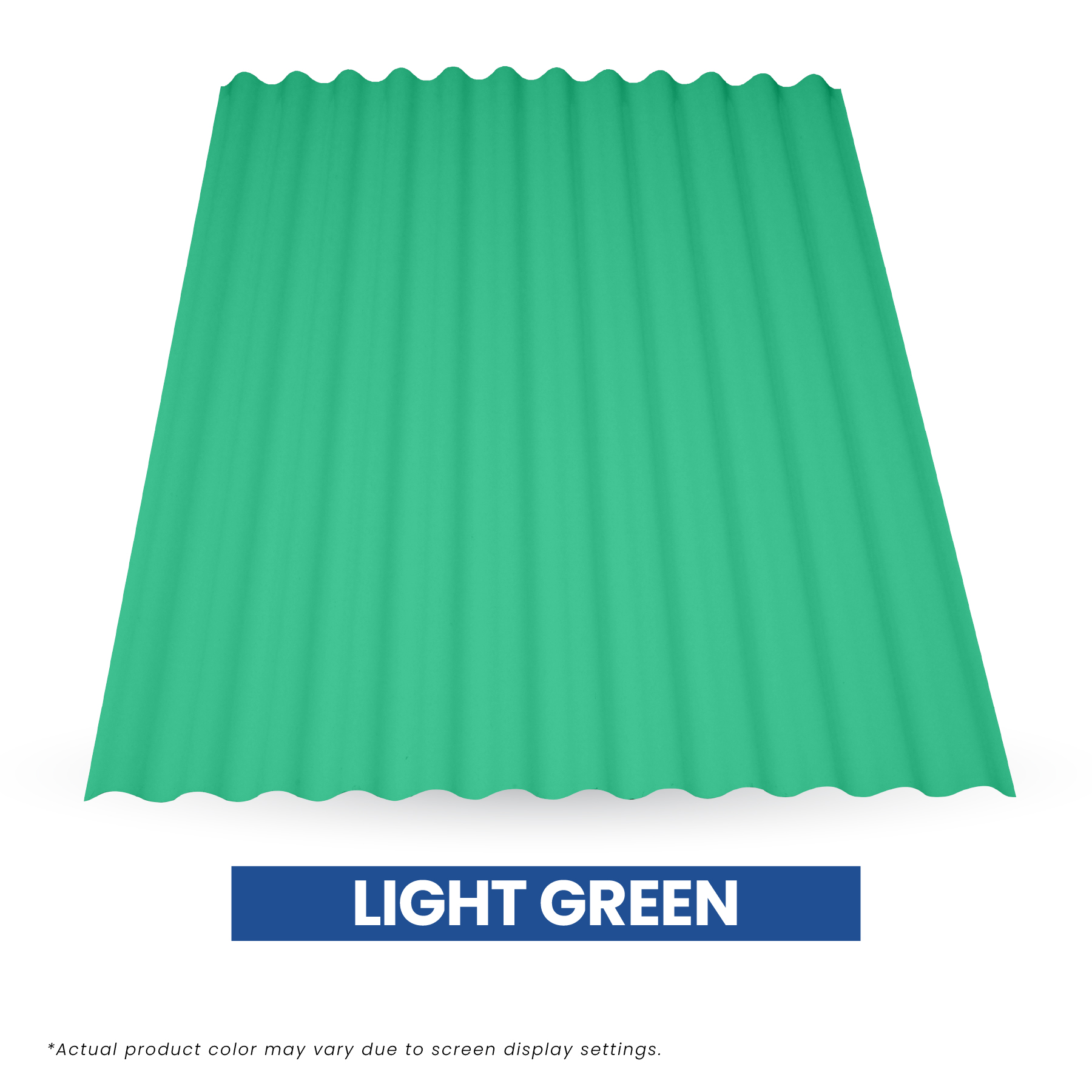

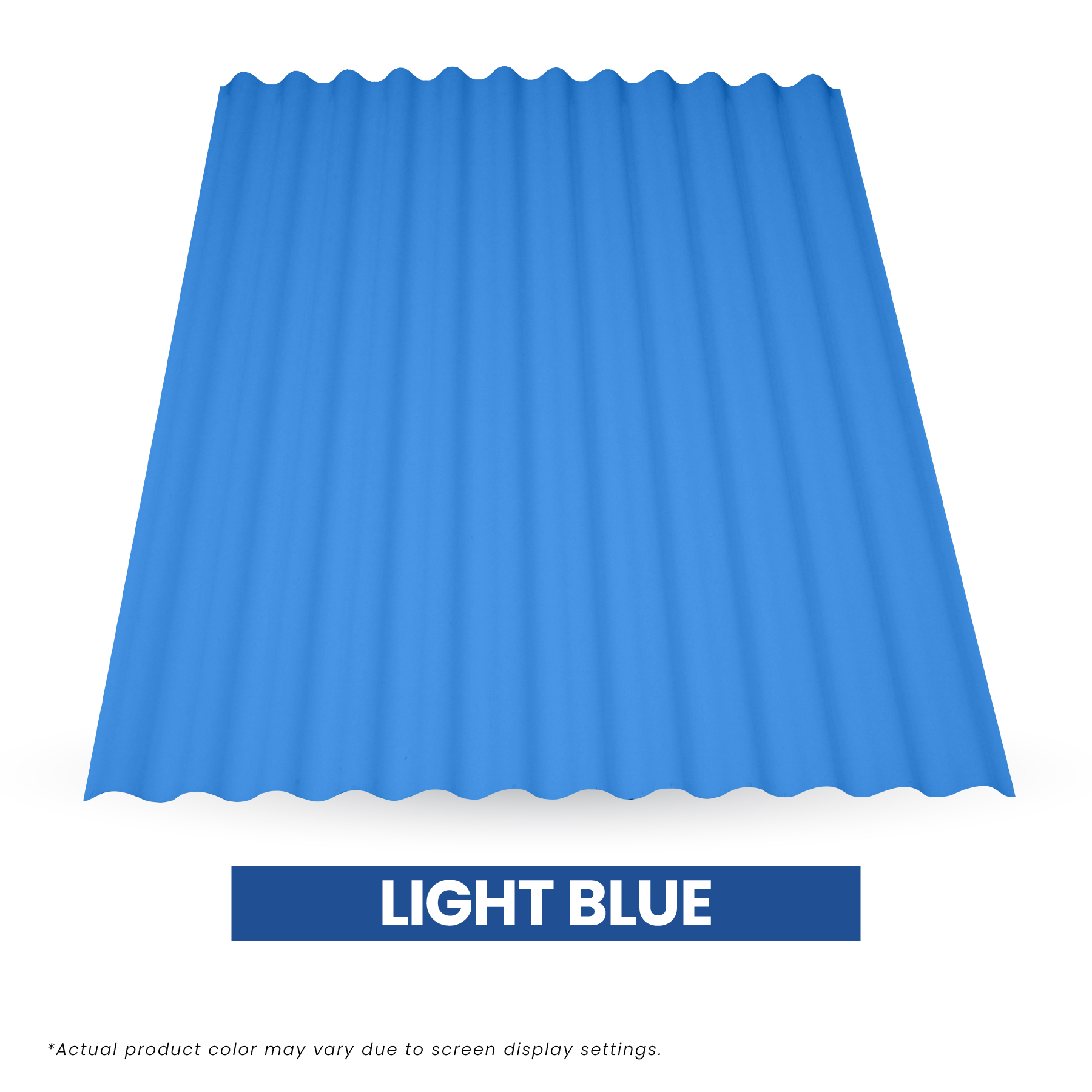

| Available Color | : | White, Ivory, Skylight, Light Green, and Light Blue |
| Available Thickness | : | 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm and 3.0 mm |
| Available Length | : | Commercial ( 8, 10, 12 feet ) |
| : | Long span (any transportable length ) | |
| Purlin Spacing | : | 0.70 m to 1.0 m |
| Fastener | : | Tekscrew with cyclonic washer |
| : | Hookbolts / J-bolts | |
| Minimum Roof Slope | : | 10 degrees (minimum) |
| Pitch | : | 75 mm |
| Depth | : | 18 mm |

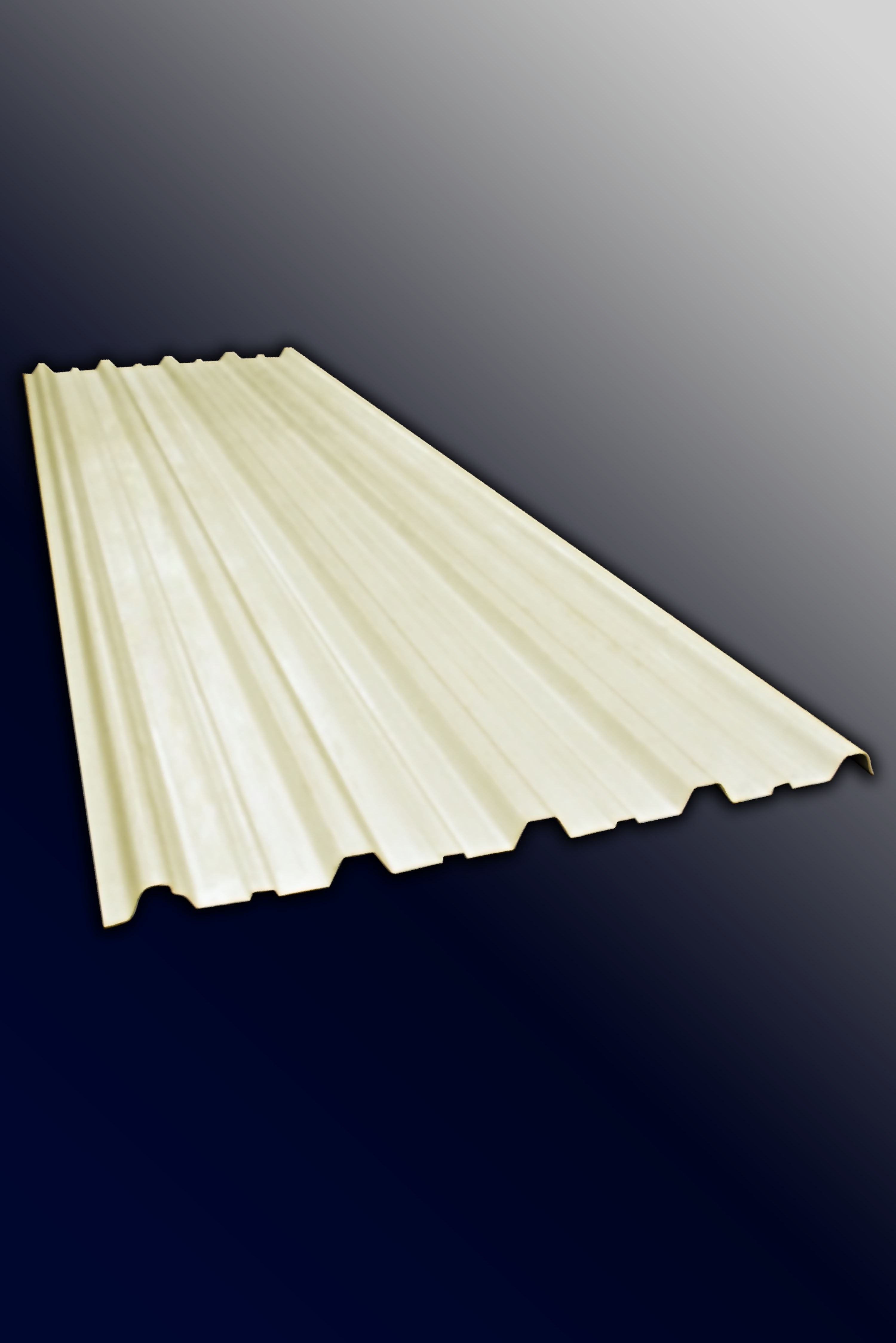

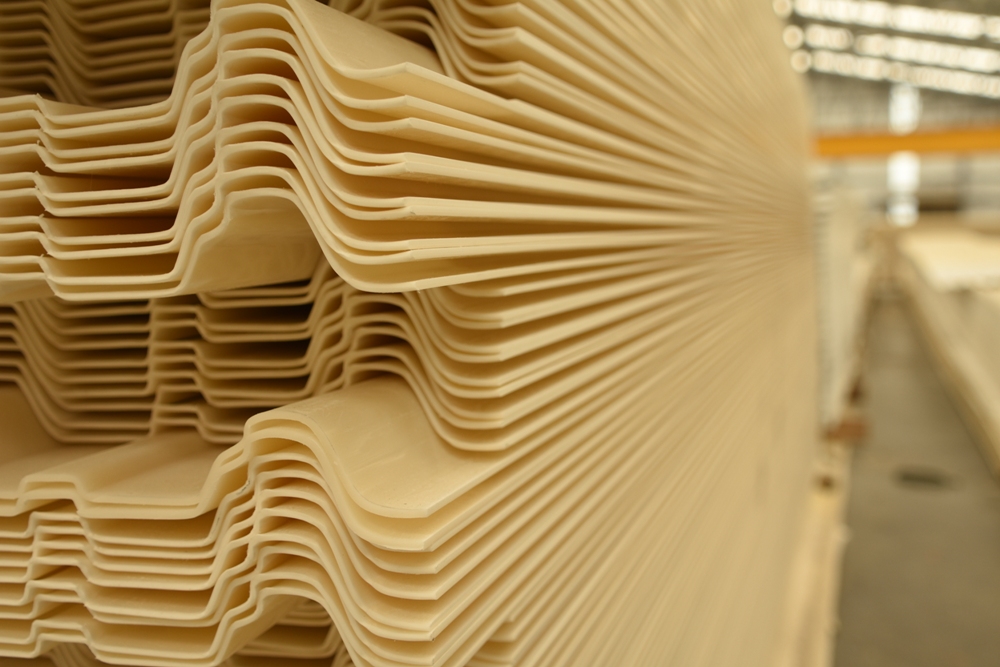

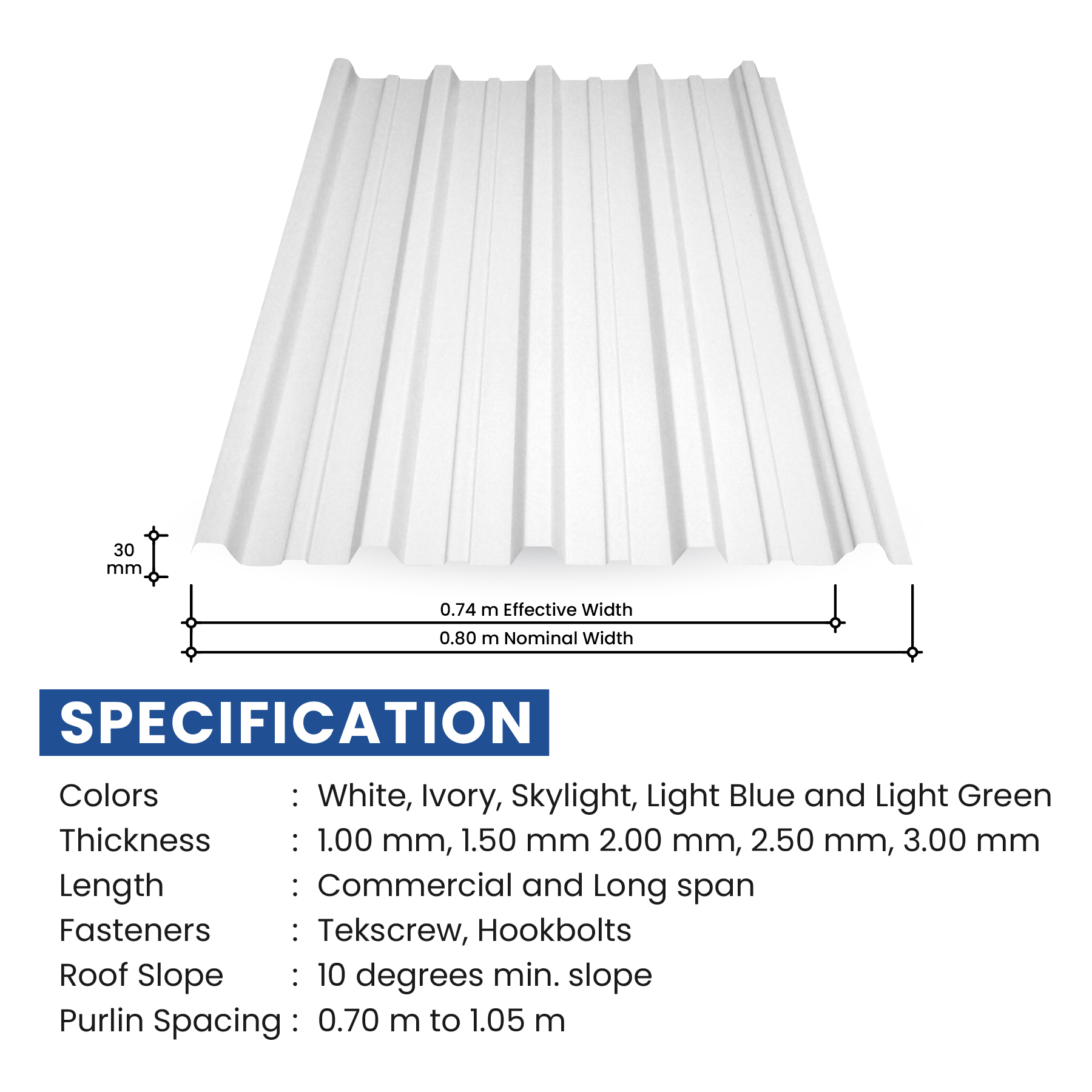

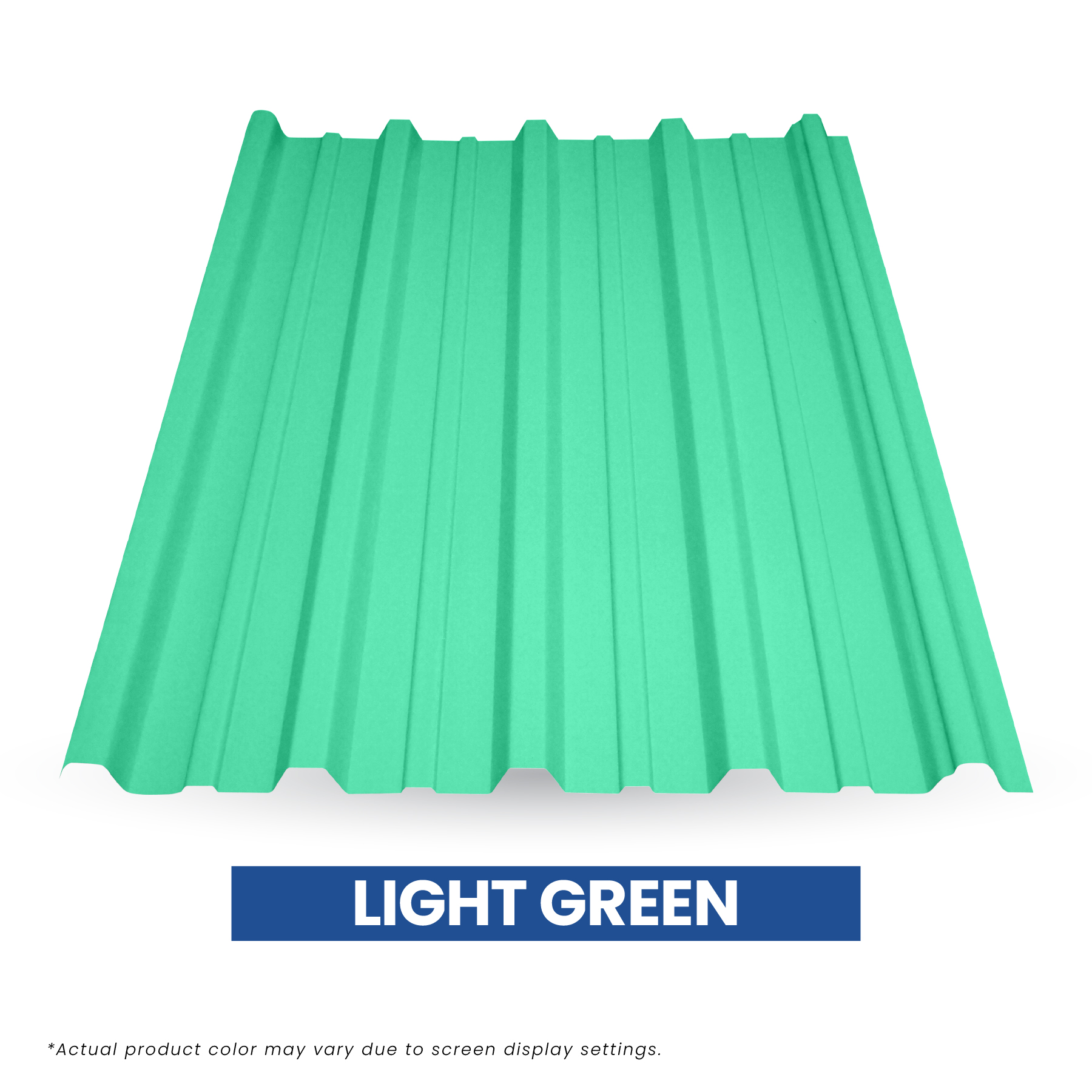

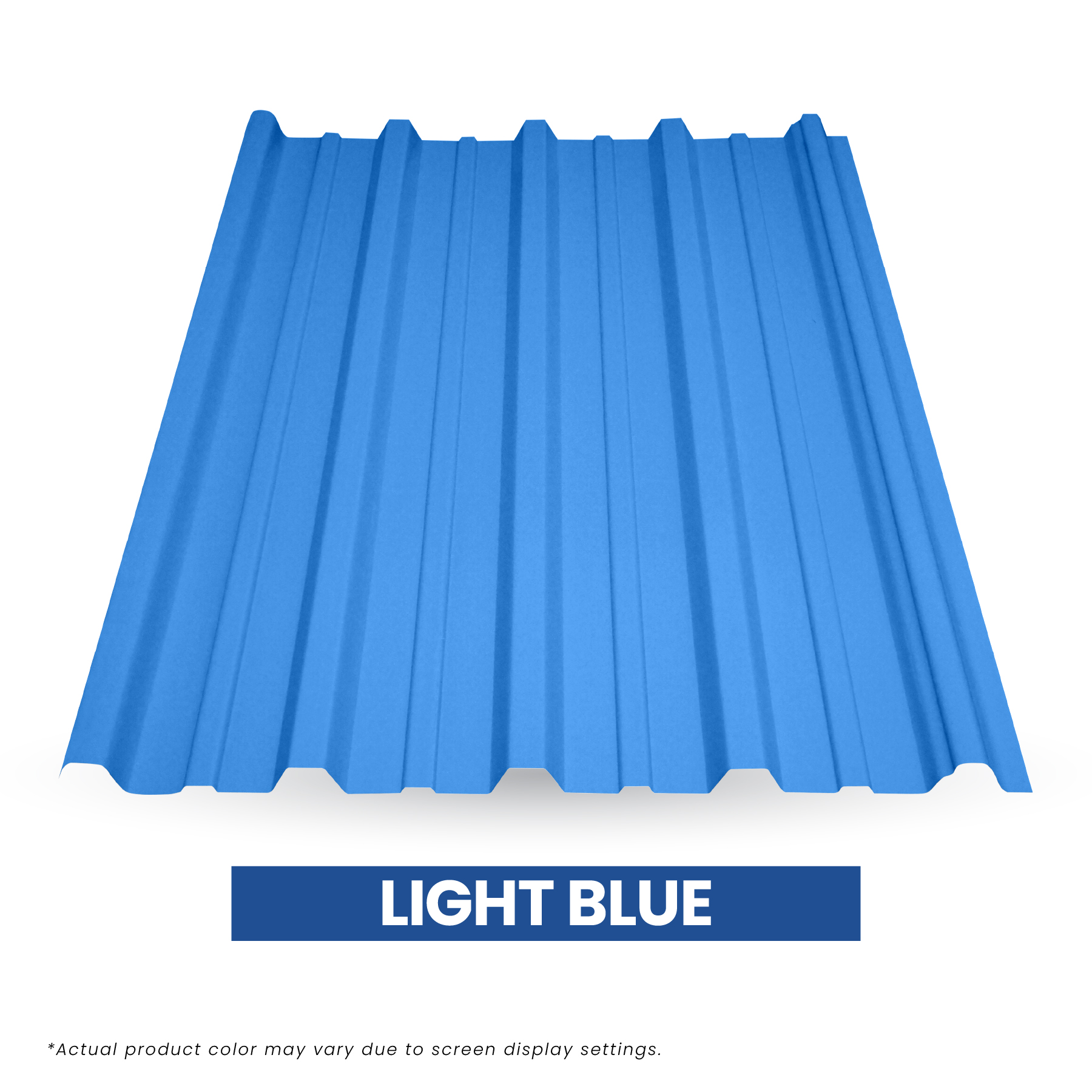

| Nominal Width | : | 0.800 meter |
| Effective Coverage | : | 0.740 meter (1 rib ) |

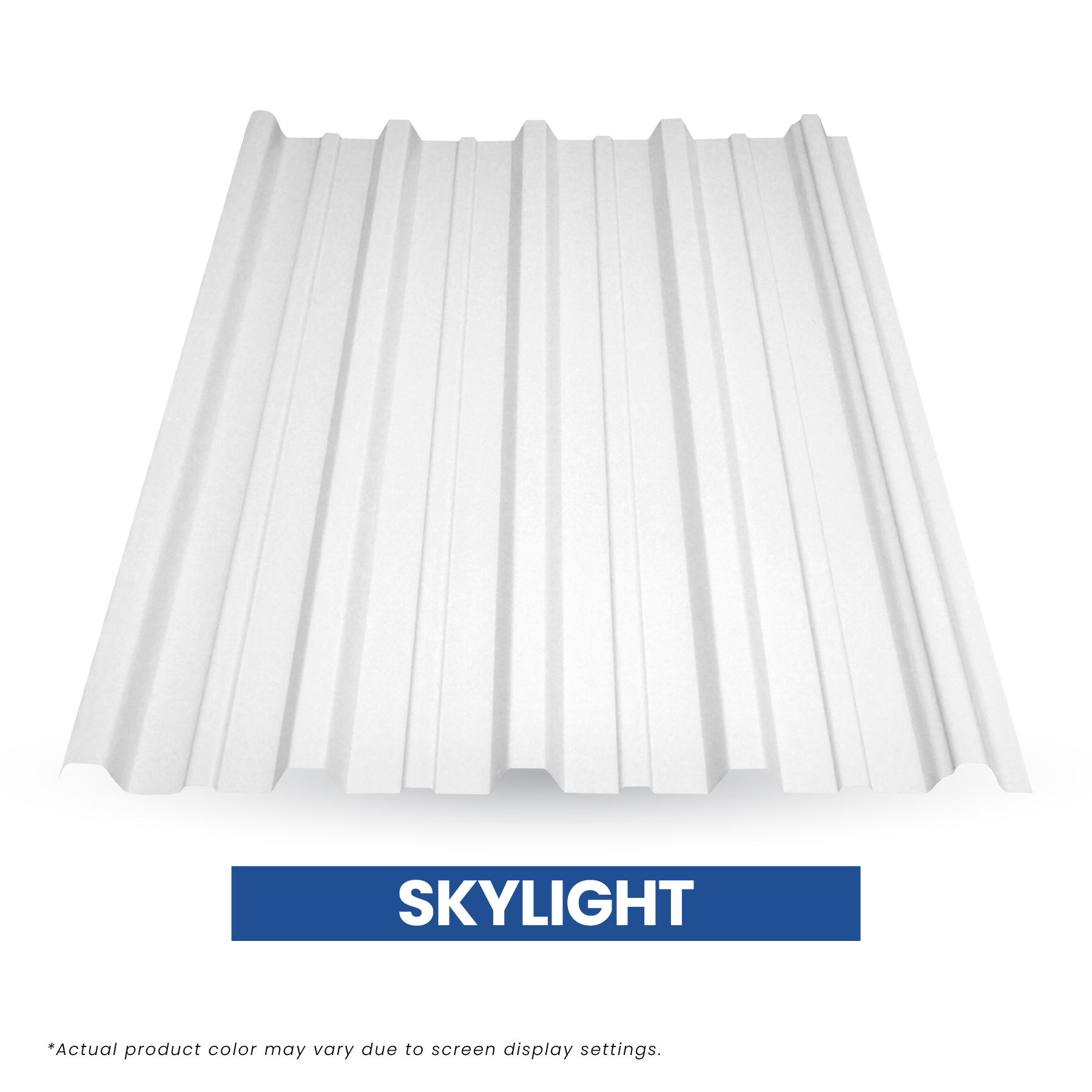

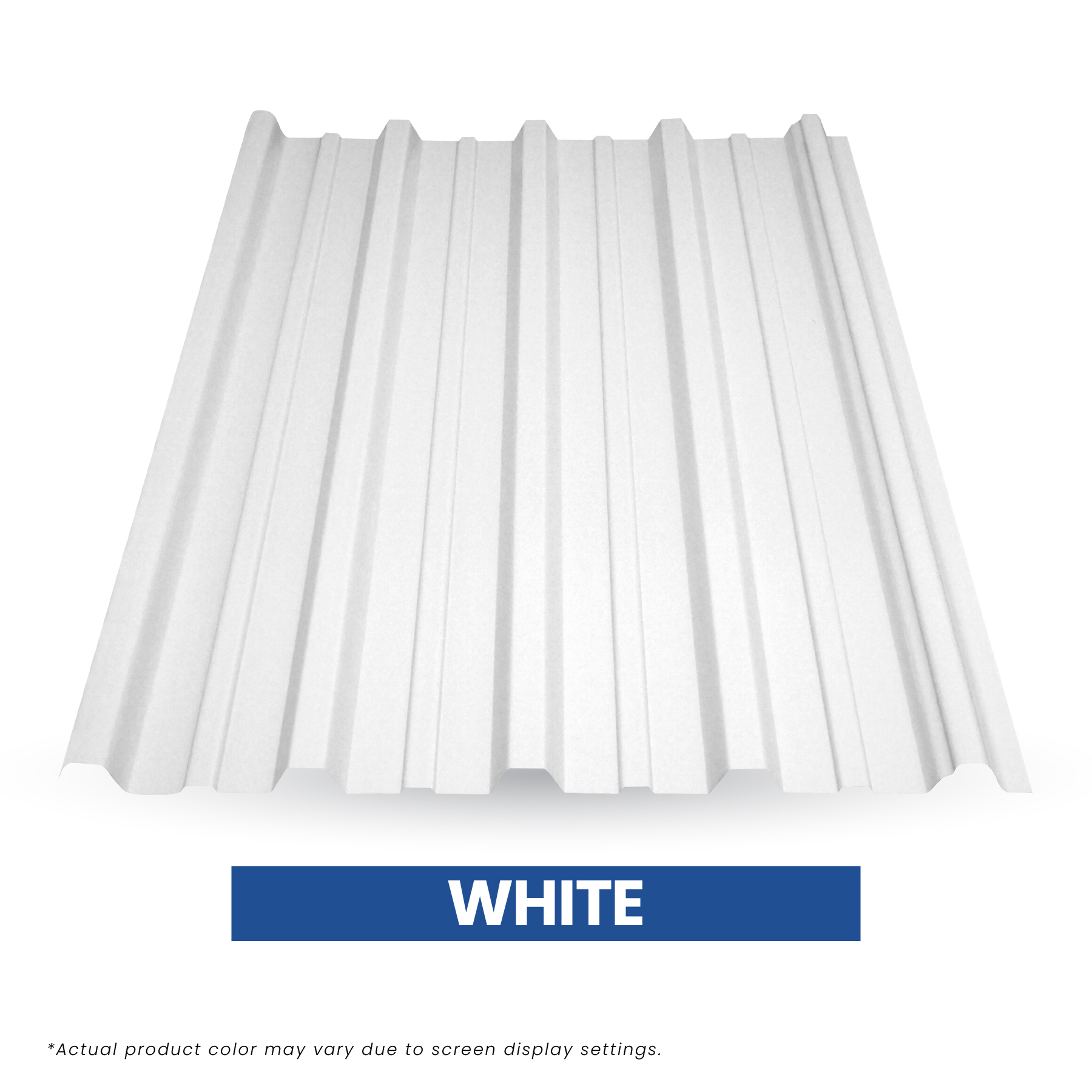

| Available Color | : | White, Ivory, Skylight, Light Green, and Light Blue |
| Available Thickness | : | 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm and 3.0 mm |
| Available Length | : | Commercial ( 8, 10, 12 feet ) |
| Long span ( transportable length ) | ||
| Purlin Spacing | : | 0.70 m to 1.0 meter |
| Fasteners | : | Tekscrew with cyclonic washer |
| : | Hookbolts / J-bolts | |
| Roof Slope | : | 10 degrees (minimum) |
| Pitch | : | 185 mm |
| Depth | : | 30 mm |
| Available Profile | : | Corrugated and Rib Type |
| Available Thickness | : | 1.5mm, 2.0mm |
| Available Length | : | Commercial ( 8, 10, 12 feet ) |
| Long Span ( any transportable length) | ||
| Fastener | : | Tekscrew with cyclonic washer |
| : | Hookbolts / J-bolts | |
| Purlin Spacing | : | 0.70m to 1.05 meter |

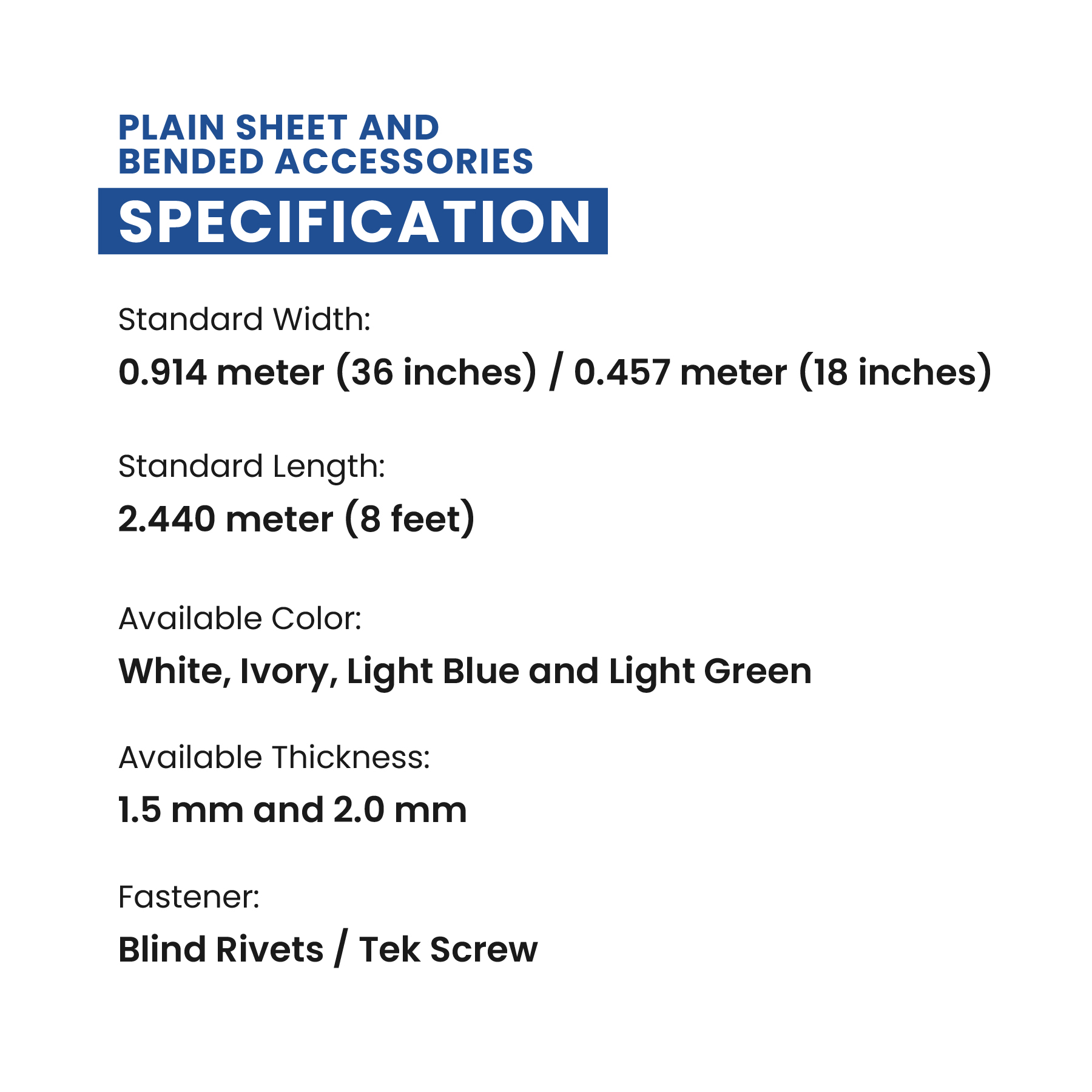

| Standard Width | : | 0.914 meter ( 36 inches ) |
| : | 0.457 meter ( 18 inches ) | |
| Standard Length | : | 2.440 meter ( 8 feet ) |
| Available Color | : | White, Ivory , Light Blue and Light Green |
| Available Thickness | : | 1.5 mm and 2.0 mm |
| Fastener | : | WaferTeks / Blind Rivets |

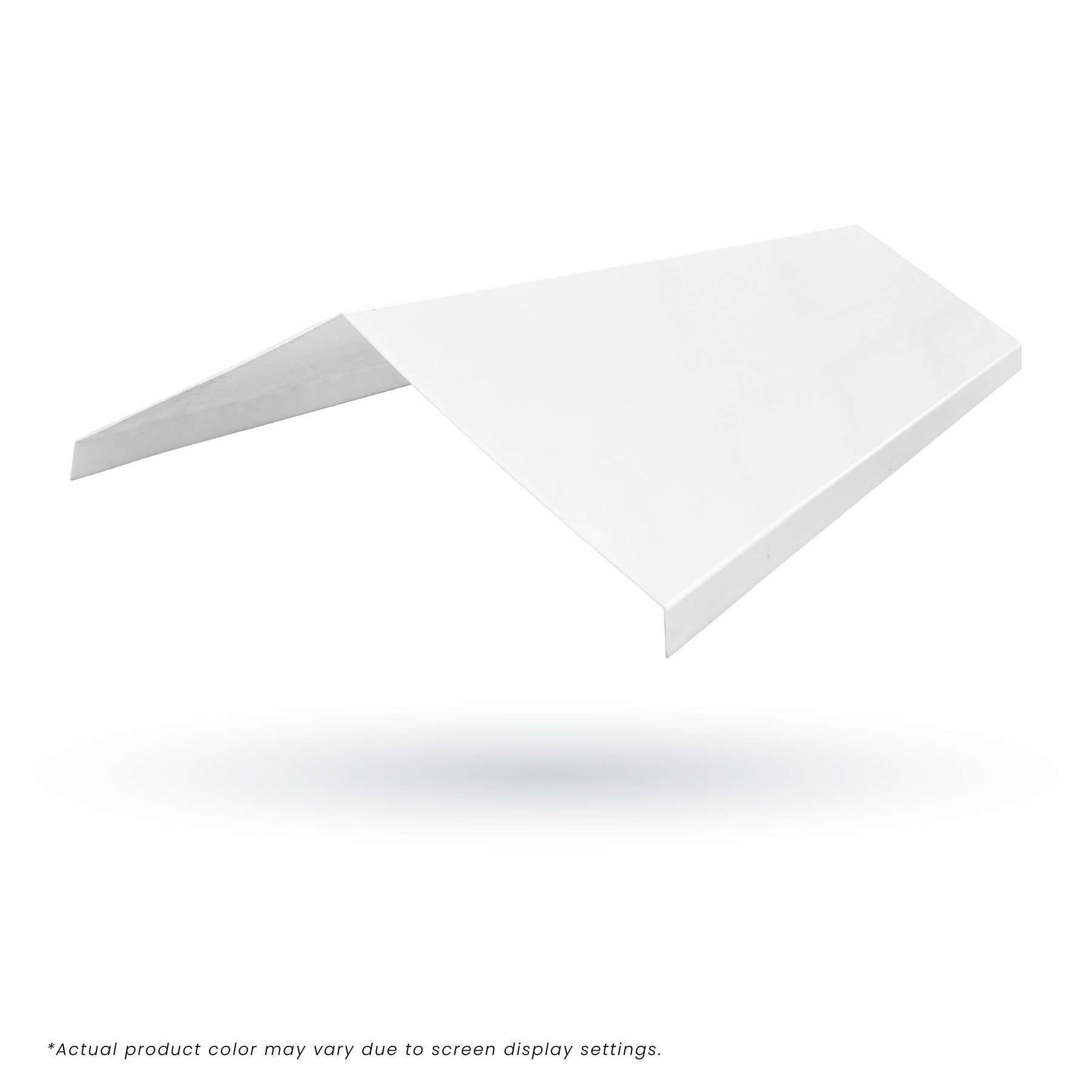

| Standard Width | : | 0.914 meter ( 36 inches ) |
| : | 0.457 meter ( 18 inches ) | |
| Standard Length | : | 2.440 meter ( 8 feet ) |
| Available Color | : | White, Ivory , Light Blue and Light Green |
| Available Thickness | : | 1.5 mm and 2.0 mm |
| Fastener | : | Blind Rivets / Wafer Teks |
